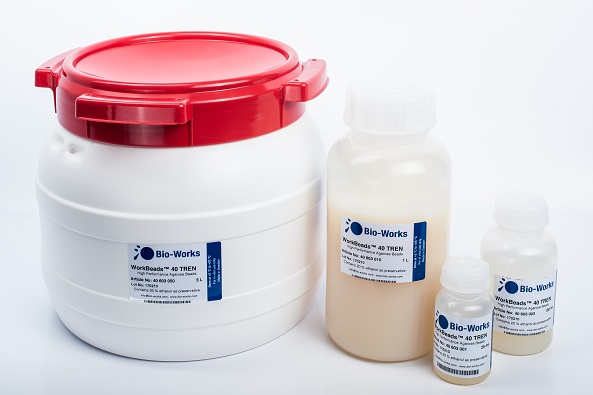

WorkBeads 40 TREN
WorkBeads™ 40 TREN resin for multimodal Ion Exchange Chromatography (IEX) has a ligand that is positively charged below approx. pH 9. The resin can be used for several different applications, in particular due to its higher salt tolerant properties, e.g. for multimodal IEX, for sample clean-up in monoclonal antibody (mAb) purification processes in order to guard the Protein A column from chromatins and other host cell impurities, or as a polishing step in the mAb purification process.
- Differential selectivity due to higher salt tolerance and multimodal properties
- Reduced fouling of Protein A resins by chromatin and host cell impurity removal
- High binding capacity and purity
WorkBeads 40 TREN resin contains ligands based on Tris(2-aminoethyl)amine (TAEA). The structure of the ligand used in WorkBeads 40 TREN is shown in Figure 1, see below. WorkBeads 40 TREN resin can be used for the separation of biomolecules exploiting surface charge to purify proteins, peptides and oligonucleotides. It can also be used in flow through mode to adsorb impurities while letting the target pass through the column (negative chromatography mode).
Purification of antibodies from mammalian host cells, such as Chinese Hamster Ovary (CHO), results in extensive bioburden on the protein A column. Regular cleaning-in-place (CIP) is mandatory in the purification process, but accumulative fouling of the column will still occur. It would be desirable to add a purification step before the protein A purification step to reduce the components that constitute the worst threat, thereby maximizing the lifetime of the protein A column and in the process improve the final purity of the target antibody.
WorkBeads 40 TREN has been demonstrated to be effective in removal of impurities such as chromatin complexes (nucleic acid-protein complexes), endotoxins and host cell proteins. The white paper "Improving your mAb purification" (click on link to document on this page) describes in detail how we introduced WorkBeads 40 TREN upstream of WorkBeads affimAb and used it in flow through mode to adsorb undesirable impurities while letting mAb pass through the column without binding.
See also blog articles: https://blog.bio-works.com/reversing-bioprocess-steps-ecp and https://blog.bio-works.com/enhanced-capture-process-a-presentation
